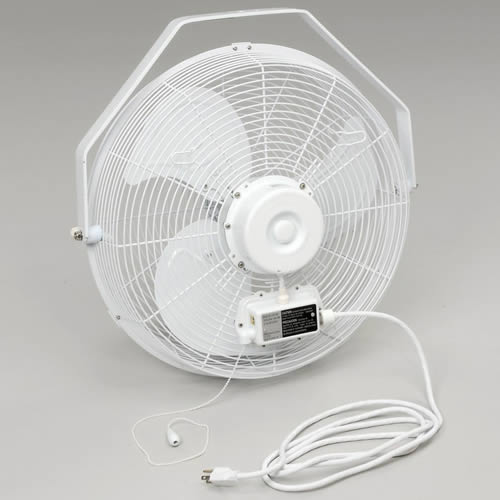

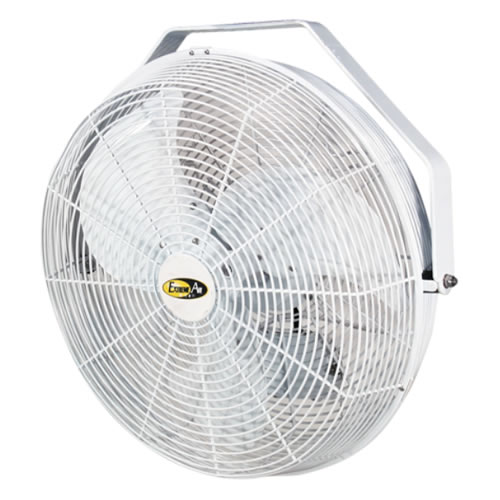

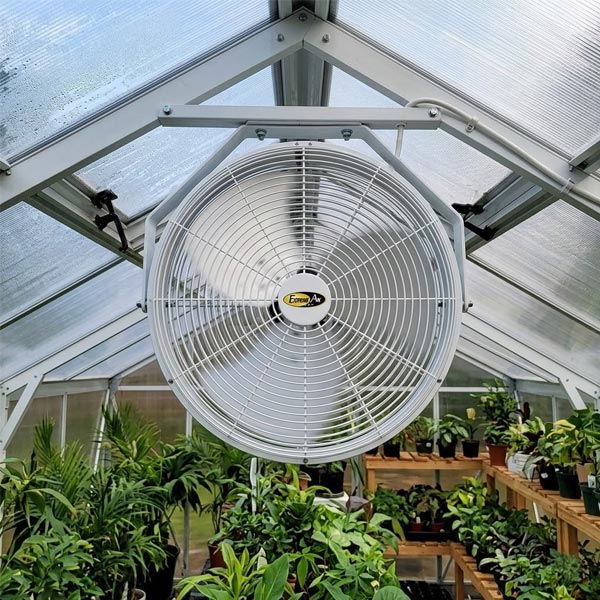

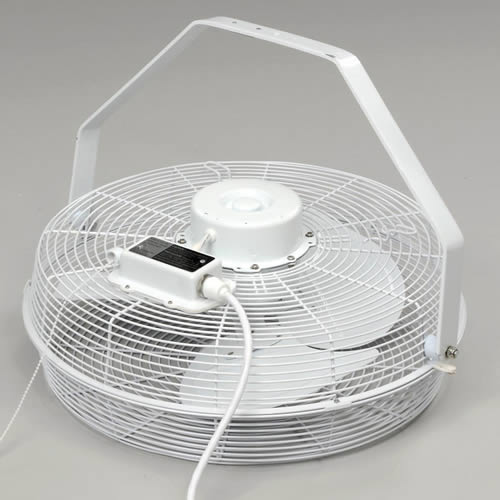

These multi speed circulation fans are composed of a high grade steel construction material with factory balanced aluminum blades all with a white powder coated finish for maximum corrosion and rust resistance. It is approved for use with misting and fogging rings for indoor and outdoor use. Fans have three speeds, completely sealed and permanently lubricated ball bearing motors with thermal overload protection and pull chain. The adjustable wall / ceiling mount bracket pivots up to 140°. Includes 8' 110/120v power cord and pull chain for speed selection. These are commonly used in greenhouses as HAF (horizontal air flow) fans.

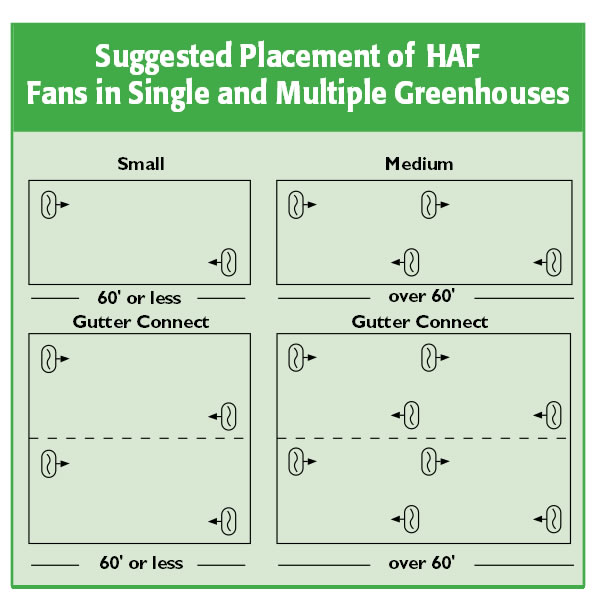

14" fan produces up to 1090 CFM of airflow and is recommended for greenhouses less than 30' long.
18" fan produces up to 2210 CFM of airflow and is recommended for greenhouses over 30' long.
Circulation Fan Features
- Pull chain 3 speed operation
- Totally enclosed outdoor rated UL507 certified motor
- Prewired with a grounded 8' power cord (no wiring required)
- Fans can be automated with any of our 110/120 volt greenhouse thermostats
- Comes completely assembled
- Low electrical usage
- Includes low profile swivel wall bracket
| Fan Size |
Weight
|
*CFM Range |
HP |
Volts |
Amps |
|
14"
|
15 lbs.
|
1090 / 1000 / 870
|
1/30
|
110/120
|
1.2
|
|
18"
|
25 lbs.
|
2210 / 1870 / 1420
|
1/8
|
110/120
|
2
|
*CFM stands for Cubic Feet per Minute which is the air volume that the fan can exhaust in one minute.
Item # 802044, 8020440, 8020445
