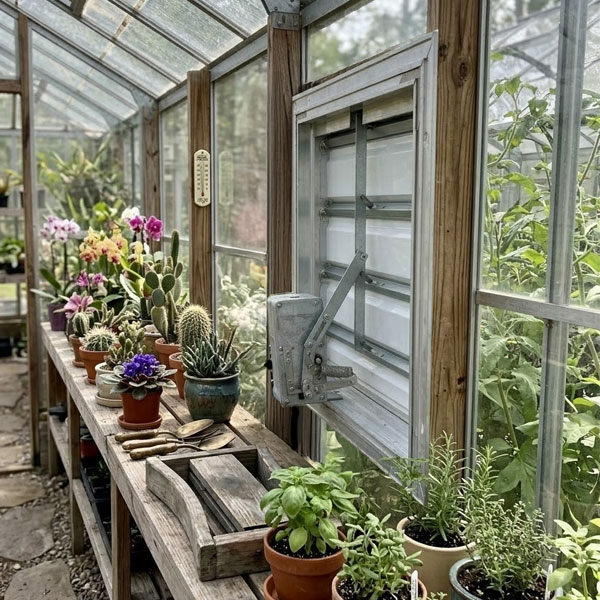

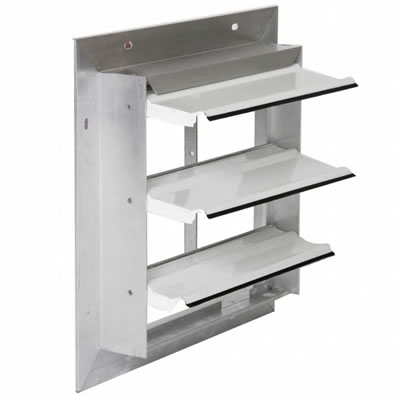

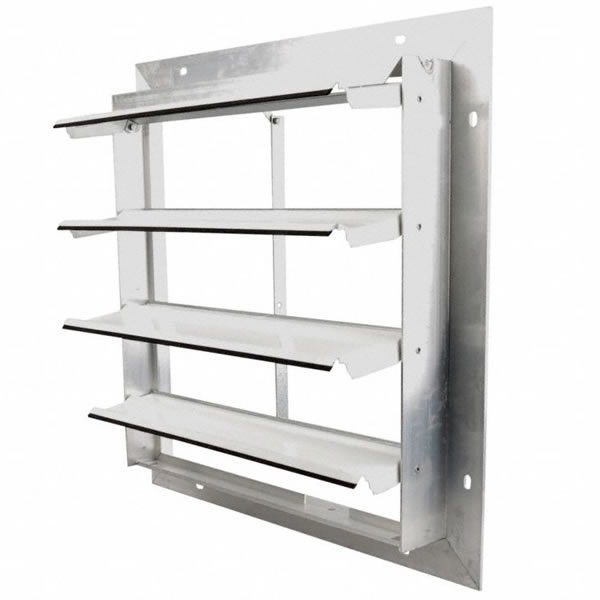

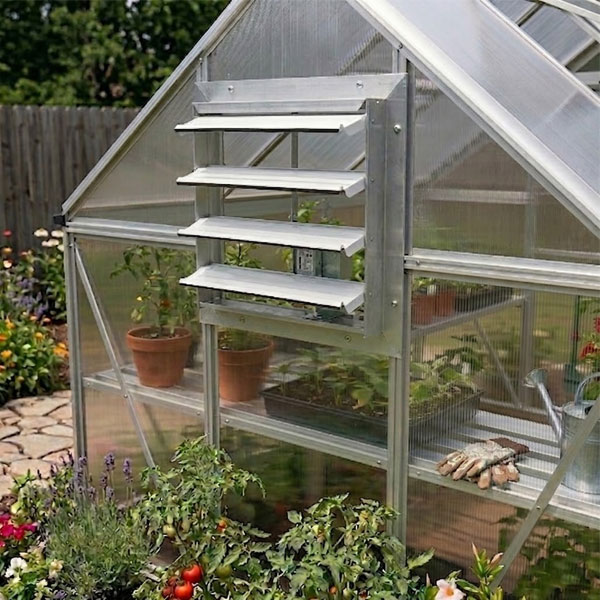

These aluminum shutters are commonly paired with exhaust fans to allow make up air into the structure to replace the air being exhaust. They can also be used for exhausting air when paired with and evaporative cooler or intake fan. The frame is mill finish
aluminum. The blades have a white enamel finish and a galvanized reinforcement strip across the top of each blade
for added strength and counter balancing efficiency. The blades have a felt seal on the leading edge for quiet closing
and better protection from the weather. Recommended for
vertical mount applications only.
Shutter Features:
- Rustproof aluminum frame and louvers
- Louvers have weather stripping to provide quiet operation and reduce heat loss
- Shutters can be equipped with an optional shutter motor to automate them
- Made in the USA

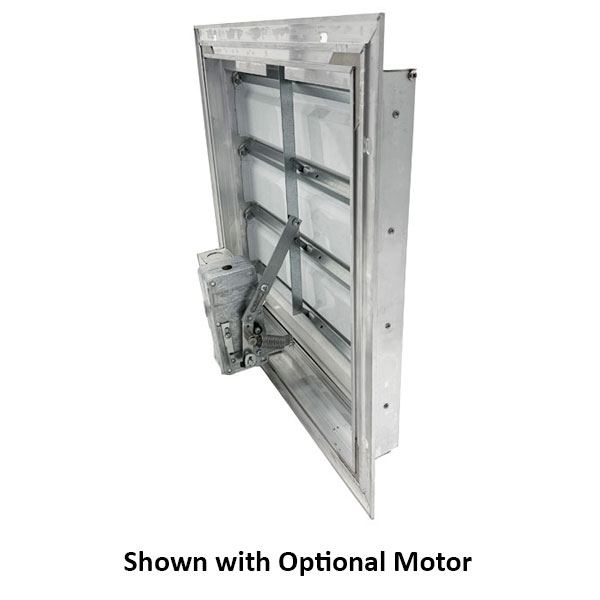

Optional Shutter Motor Features:
- Motors mount directly to shutter for easy installation
- Lowest power usage in the industry of less than 3 watts
- Very quiet. No loud humming commonly found with other shutter motor brands
- Can be hard wired or prewired with an 3' power cord and plug
- Motors can be automated with any of our 110/120 volt thermostats
- Made In the USA
Aluminum Intake Shutter Specifications
|
Shutter Size
|
A
|
B
|
C
|
Rough
Opening
|
|
12"
|
12 1/16"
|
15 1/8"
|
2 5/16"
|
12 1/4" sq.
|
|
16"
|
16 1/16"
|
19 1/8"
|
2 5/16"
|
16 1/4" sq.
|
|
20"
|
20 1/16"
|
23 1/8"
|
2 5/16"
|
20 1/4" sq.
|
|
24"
|
24 1/16"
|
27 1/8"
|
2 5/16"
|
24 1/4" sq.
|
|
30"
|
30 1/16"
|
33 1/8"
|
2 5/16"
|
30 1/4" sq.
|
Aluminum Shutter Instruction Manual - Includes dimensions, layout, and installation tips.
Shutter Size Guide
- Not sure what size intake shutters to pair with your exhaust fan? Our guide has recommendations for you.
Item # 8015205, 8015210, 8015220, 8015230, 8015240
