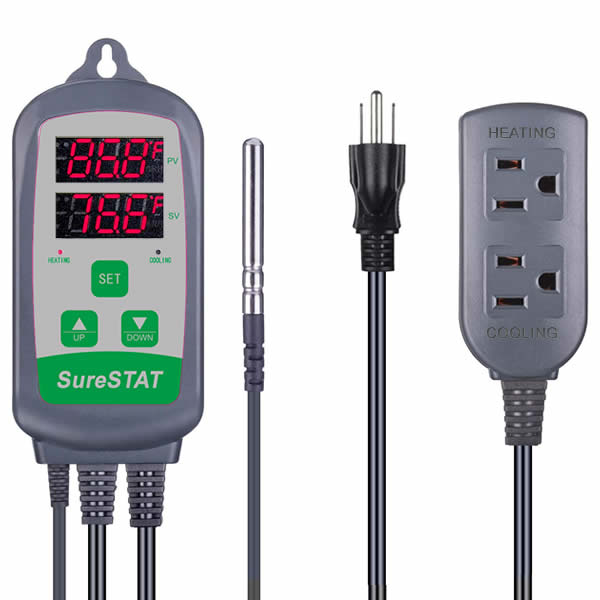

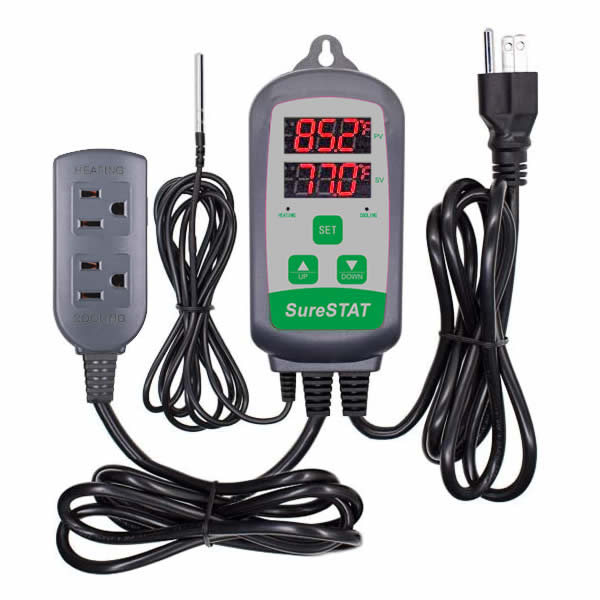

This plug-in temperature controller comes with a remote temperature sensor can be used to control heating and cooling devices at the same time. No wiring is necessary. Simply plug the device you want to control into the corresponding outlet on the controller and set the temperature you want to maintain. You can also customize the differential or dead-band for heating and cooling modes giving the controller maximum adjustability.
Thermostat Features
- -50° to 210°F temperature range
- Adjustable heating & cooling differentials: 1° to 30°F
- Built-in temperature calibration
- Operates on 110/120 voltage up to 15 amps (1800W)
- High & low temperature alarms can be set
- Includes 5' power supply cord
- Includes heating and cooling outlets with 5' cord
- Includes 6' remote sensor
- Settings are saved in the event of a power outage
What is a Differential? The difference between on and off setpoints on a control. For temperature, it is the difference in degrees between the thermostat's on and off setting. If you make the temperature setpoint 75° and set the heating differential to 3 degrees, it will supply power to the heating outlet at any temperature below 72° and cut off at 75°. In contrast, setting the cooling differential to 3 degrees will supply power to the cooling outlet at any temperature above 78° and cut off at 75°.
How the DT10 Differential Works - This control has 1 setpoint (SV value). The heating outlet will turn off when the temperature rises above the setpoint. The cooling outlet will cut off when the temperature drops below the setpoint. You can control the temperature that the heating outlet comes on with the CD differential value. For instance if the setpoint is 60 and you set the CD to 10, the heat will come on at 50 and then back off at 60. The HD differential setting will determine what temperature the cooling outlet comes on. For instance if you set the HD to 20, the cooling will come on at 80 and off at 60. If you prefer to have a separate setpoint for heating and cooling, we recommend one of these thermostats instead:
