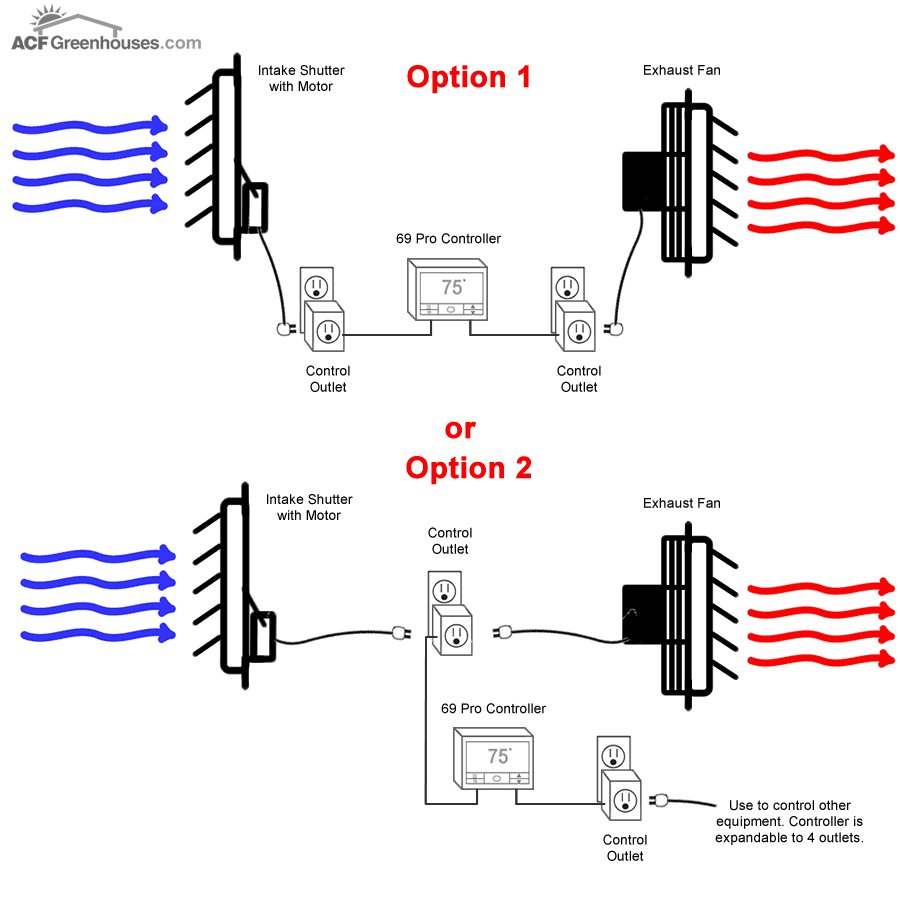

The Elite fan systems come with our most advanced controller which can be used to automate other equipment in your greenhouse at the same time! No wiring required. All equipment just plugs into the included control outlets. Each fan system is packaged with all of the equipment needed to provide an automated fan and intake(s) for your greenhouse, shop, or garage. All included items are sized to provide optimal functionality of each fan ventilation system. The 69 Pro controller can automate equipment by temperature, humidity, and/or timer. It has Bluetooth and WIFI capability and can be viewed/setup with the smartphone app from anywhere in the world! Links are provided below to each piece of equipment in the fan packages. Just click on the text for more information. Dimensions and specifications are also provided in the installation instructions below.

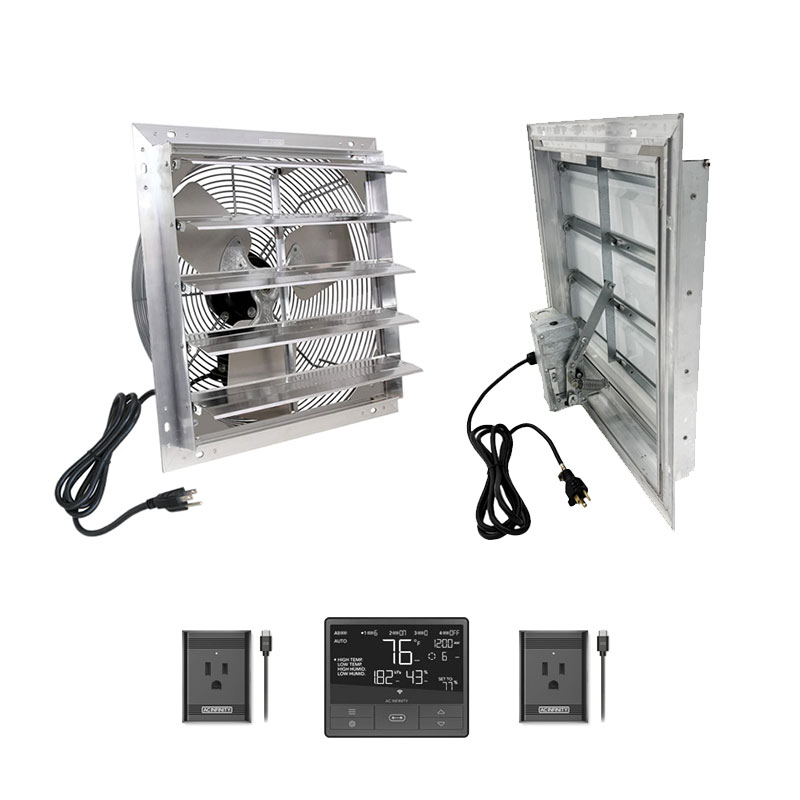

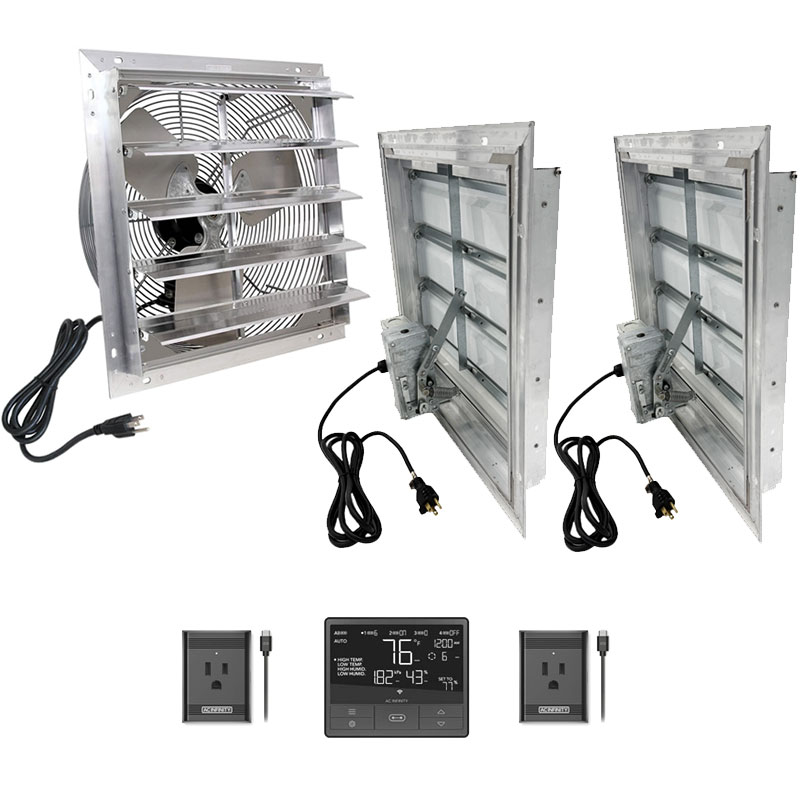

Elite Plug-in Fan System Features:

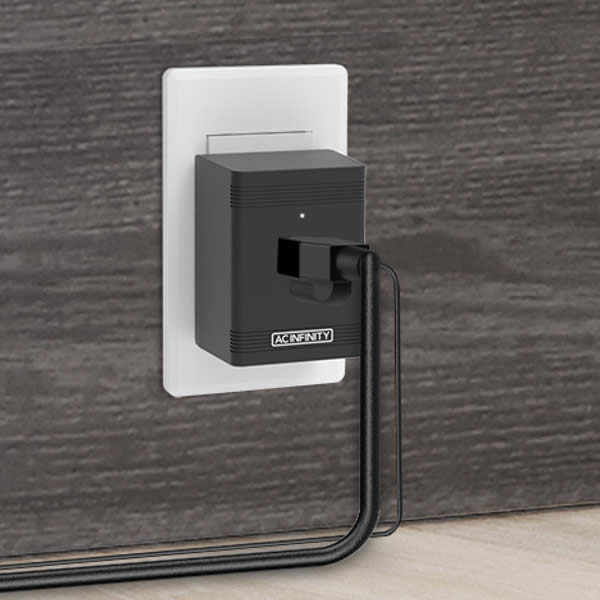

- 69 Pro plug-in multi-function controller + (2) control outlets
(up to 4 control outlets can be used with controller)

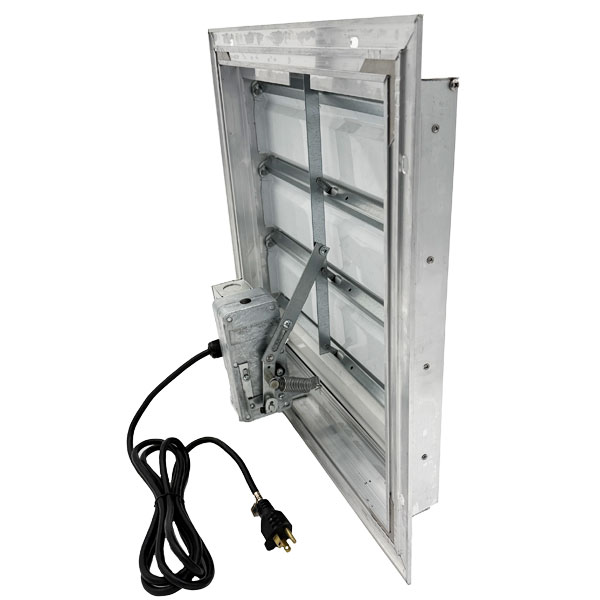

- Aluminum intake shutters with plug-in motors
- Louvered plug-in exhaust fan with multiple speed options

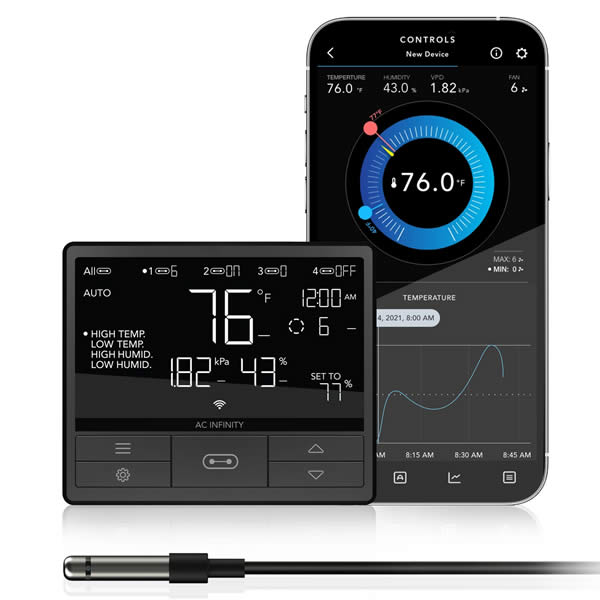

69 Pro Controller Features
- Humidity range: 0% to 100%
- Temperature range: 32° F to 194°F
- Cycle timer range: 1 minute to 24 hours (ON & OFF cycles)
- Adjustable differential / buffer: 1° to 30°F temp., 1% to 10% humidity
- Connect to phone app via WIFI (2.4G) or Bluetooth for climate monitoring, setup, & data graphs.
- 10' temperature and humidity sensor with photocell
- Optional manual calibration
- Internal battery keeps settings during unexpected power failure
Elite Multi Speed Fan System Specifications
Elite Plug-in Fan System Instruction Manual - Includes dimensions, layout, and installation tips.
Fan & Shutter Size Calculator - Not sure what size fan system you need for your greenhouse? Just enter the measurements into our calculator to find out!
Item # 8007510, 8007515, 8007520, 8007525, 8007530, 8007535, 8007540, 8007545, 800567
